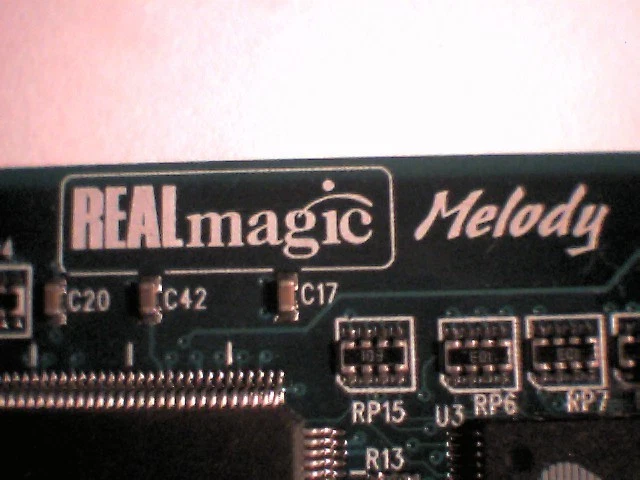

RealMagic Melody

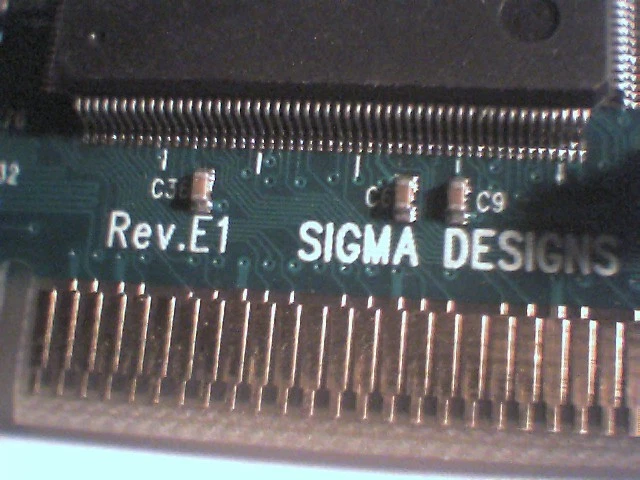

53-000662-01  Rev.E1

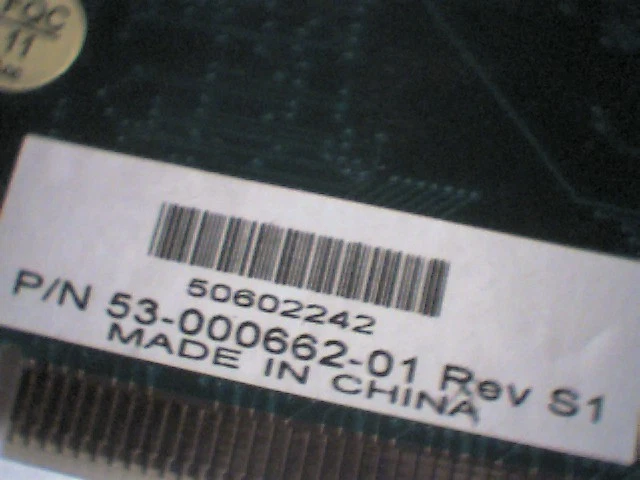

some S1, some S2

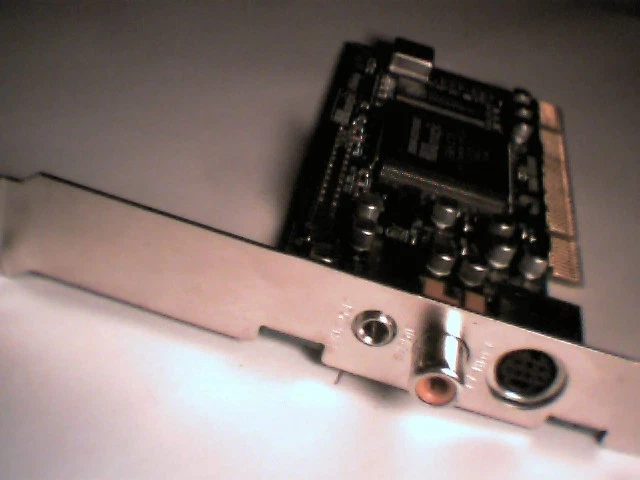

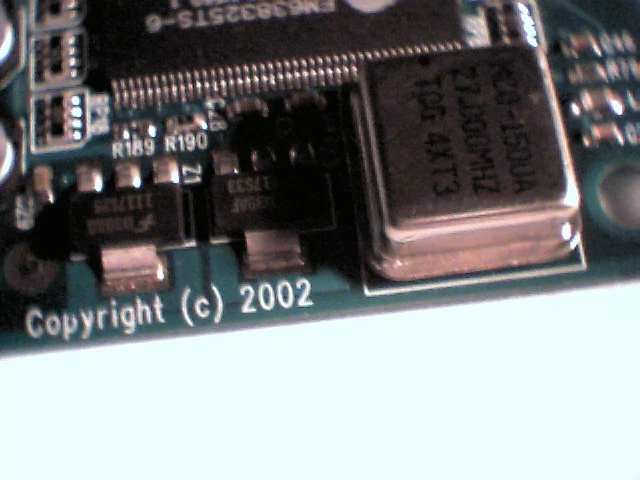

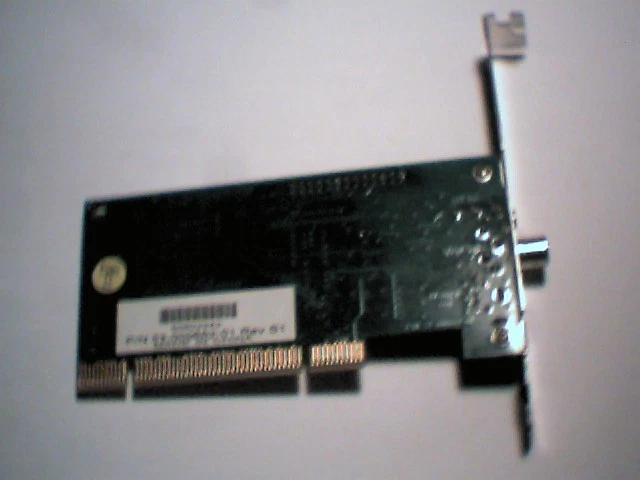

PCI Video Card made by Sigma Designs in 2002

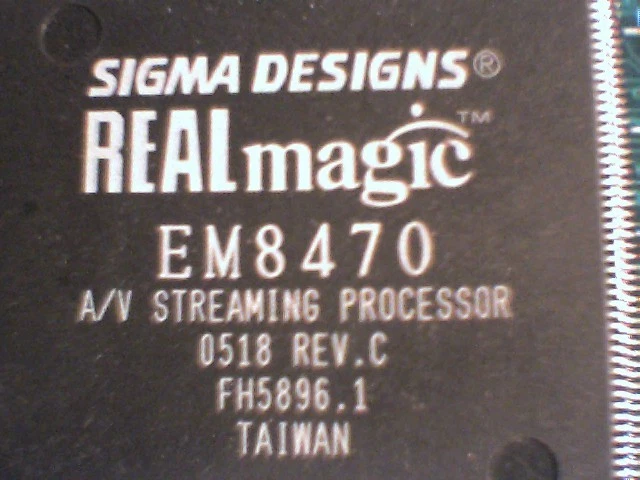

EM8470 A/V Streaming Processor chip

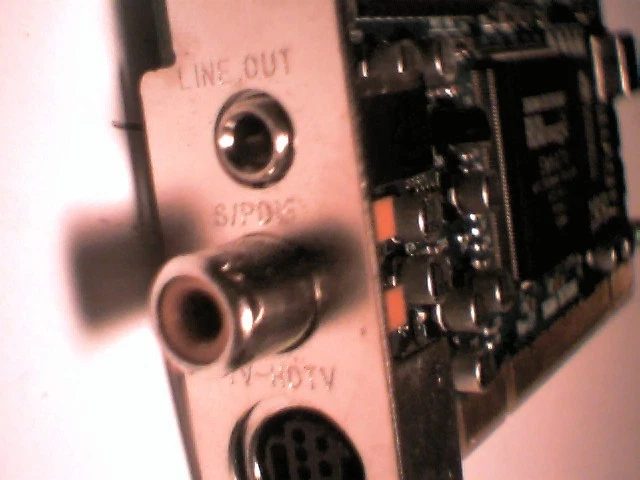

S/PDIF output
TV-HDTV Output
Line Out
the 8470 does Mpeg 1, 2 & 4 decode
we do not have drivers,any drivers will most likely be for WinXPsearch for drivers for EM8400and "may" also be similar to the "XCARD"this card was probably pulled from a Linux-based set-top boxthis site: touslesdrivers.com/index.php?v_page=12&v_code=757has drivers for XCARD win98/2000/ME/XP that might work
also:semantic.gs/em8470_realmagic_dvd_mpeg_4_a_v_decoder_driver_v2_download
the 26-pin Digital Video Out port does seem to be a VESA compatibleconnector to connect to a VIP (Video Input Port) or Feature Connector on a video card
(Pin 1 GND, Pin 2 D0, Pin 3 GND, Pin 4 D1, Pin 5 GND, Pin 6 D2, Pin 7 NC,Pin 8 D3, Pin 9 NC, Pin 10 D4, Pin 11 Pixel Vertical Clock, Pin 12 D5, Pin 13 NC,Pin 14 D6, Pin 15 GND, Pin 16 D7, Pin 17 GND, Pin 18 Pixel Clock, Pin 19 GND,Pin 20 Pixel Horizontal Clock, Pin 21 GND, Pin 22-25 NC, Pin 26 GND)
The EM847x family is a single-chip MPEG audio/video decoder that supportsDVD-Video, Superbit™ DVD, SVCD, VCD and audio CD media formats.Video decoding support includes MPEG-1, MPEG-2 MP@ML and MPEG-4advanced simple video profile Level 51. Audio decoding support includesDolby® Digital, MPEG-1 Layers 1 and 2, MPEG-4 high quality profile Level 2,and 16-bit linear PCM. DVD-Video support includes hardware CSS decryption, 16:9 and 4:3 aspect ratios, letterboxing, 3:2 pull-down, multiple anglesand sub-picture.Based on the company’s award-winning REALmagic® Video Streaming Technology, the EM847x family provides highly-integrated solutions for high-quality decoding of MPEG-1, MPEG-2 and MPEG-4. Positioned as a costeffective solution for streaming video clients, advanced digital set-top boxesand next-generation interactive DVD players, the EM847x enables manufacturers to easily incorporate streaming video, progressive DVD playback andvideo-on-demand into their products

USED but in good condition.  WORKING!

Just the card, no documentation, no cables, no software, no packaging.
