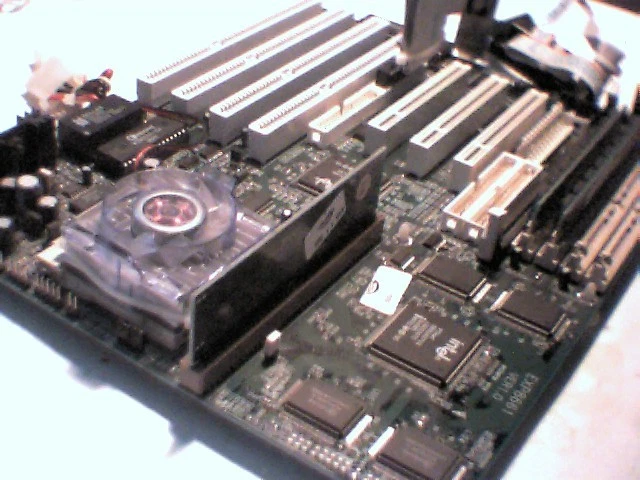

EXP8661 Ver 1.0
Socket7 Motherboard
Made by Data Expert in 1995

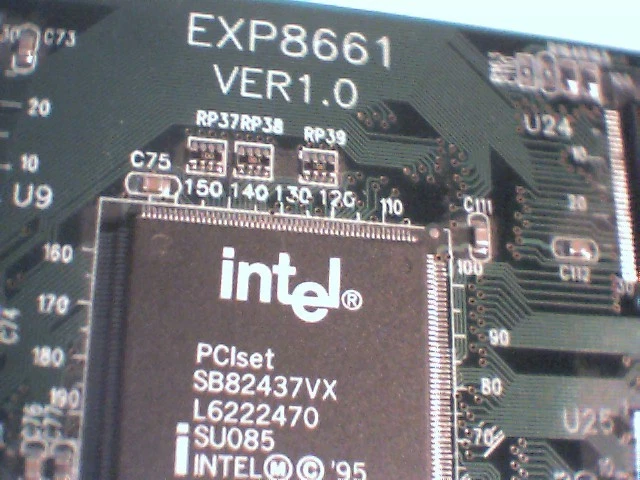

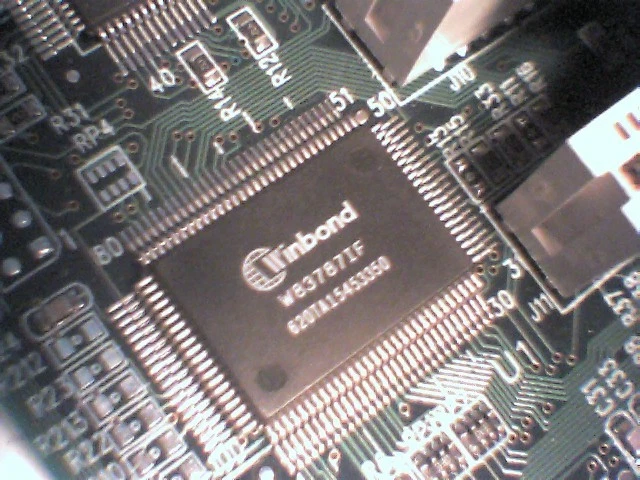

built around the Intel SB82437VX 430VX Chipset and Winbond W83877TF I/O chip
Baby-AT form Factor. 8.75 x 11 inches

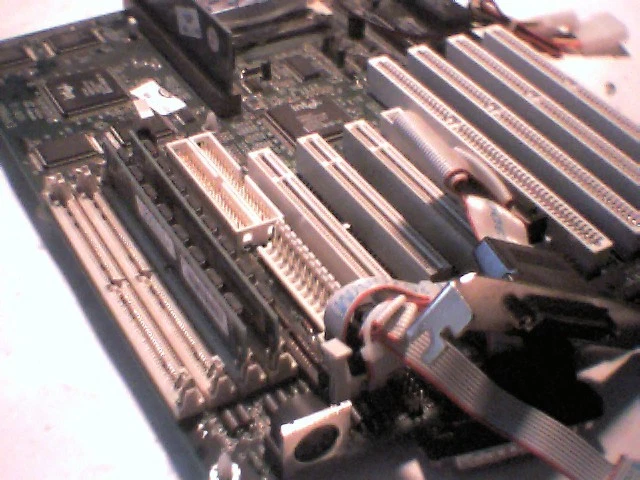

four 16-bit ISA slots and 3 PCI slots
one 168-pin DIMM slot, and four 72-pin SIMM slots
comes with Intel 100MHz or faster CPU and heatsink and fan
comes with 16MB RAM or more and 512K cache
comes with 2 serial cable and parallel cable only, no other cables,
(has onboard IR and USB but no cables are included)
USED but in good condition. WORKING.
AMI BIOS: 51-0615-00107-00111111-071595-82430VX-H
The EXP8661 motherboard offers the outstanding I/O capabilities.
Three PCI Local Bus slots provide a high bandwidth data path for
data-movement intensive functions such as graphics. Four ISA
slots complete the I/O mix.
The EXP8661 motherboard supports the following features:
INTEL PENTIUM 75/90/100/120/133/150/166/200 MHz CPU,
CYRIX 6x86-120+(100MHz)/ 6x86-133+(110MHz)/6x86-150+(120MHz)/6x86-166+(133MHz)
AMD 5K86-P75/5K86-P90/5K86-P100/K5-PR120(90MHz)/K5-PR133(100MHz)/K5-PR166 CPU
- 3 MASTER 32-bit PCI Bus
- L1/L2 Write Back/Write Through Cache
- 256KB/512KB cache cize
- 72-pin SIMM Modules and 168-pin DIMM Module
- 2 Serial/1 Parallel/1 FDC on board
- 2-CHANNEL PCI IDE on board
- MESI (Modified Exclusive Shared Invalid) protocol to maintain the data
coherence for L2 Cache to optimize CPU bus.
CPU Clock Speed: 50/55/60/66 MHz
Memory: 8MB to 128MB
SRAM: 256K/512K
Slot type: Four 16-bit ISA Bus
Miscellaneous Connectors: Reset button, Suspend button
OS/2 Compatible Mode
