Floppy Drive

JU-475-3 AGJ

(if you are trying to match a drive ignore the last 3 characters)

Made by Panasonic Matsushita in Philippines in 1988

5.25", 1.2M HD  (High Density)

 backwards compatible with 360K DD and 180K DD 1S (single sided)

nice condition

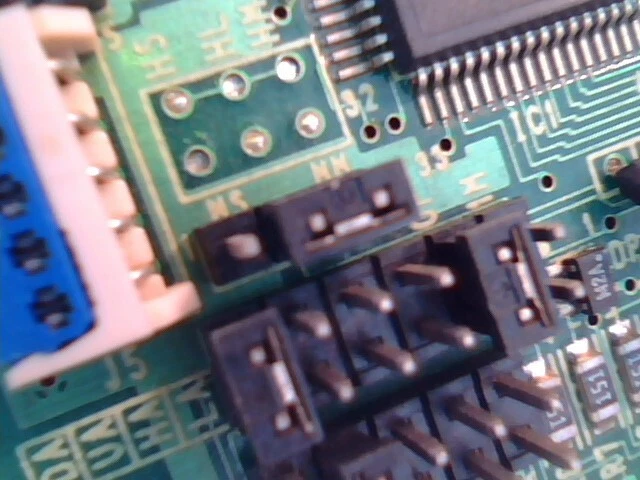

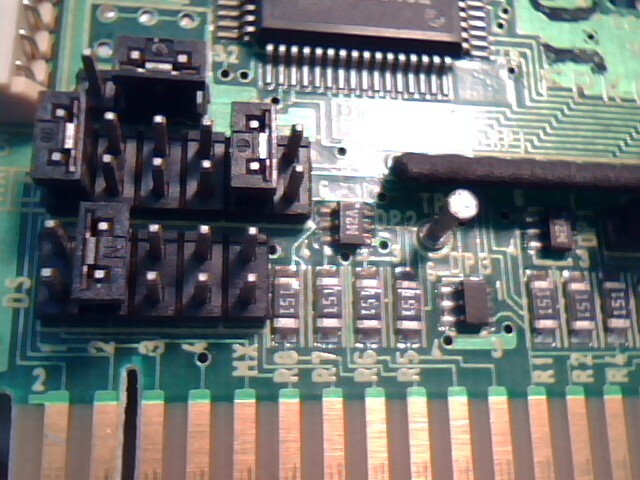

has these jumper settings:

TM Terminator

DS: Drive number 1-4 (same as 0-3)

MX Drive selected permanently

DA Front LED controlled by the Drive Select signal

UA Front LED controlled by the Ready signal

HA Front LED controlled by the Ready and Drive Select signals

LA Front LED controlled by the Ready signal selecting the drive

MS Motor drive enabled by the Drive Select signal

MM Motor drive enabled by the Motor On signal

HS Head loading controlled by the Drive Select signal (not used)

HL Head loading controlled by the Drive Select and Ready signals (not used)

HM Head loading controlled by the Motor On signal (not used)

OP Dual Mode

1M Single Mode (only 1 MB)

BX Double speed

NAX Used with OP, BX and 1M

EX Active index after head positioning on any track

TH Interface connector pin 34 selected by the Drive Select signal

DD Not used

MDB Pin 34 is kept low by Drive Select when the support is not inserted

and by the first Drive Select when the support has been changed

USED but in good condition.   WORKING.
