USED but in good condition.  WORKING.

just the item as pictured, no software, no documentation.

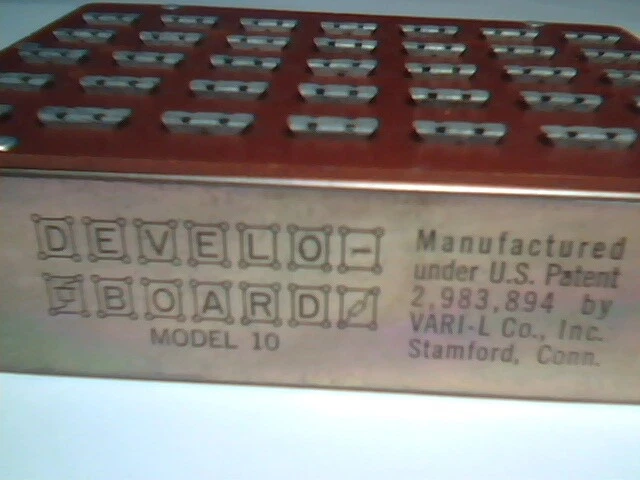

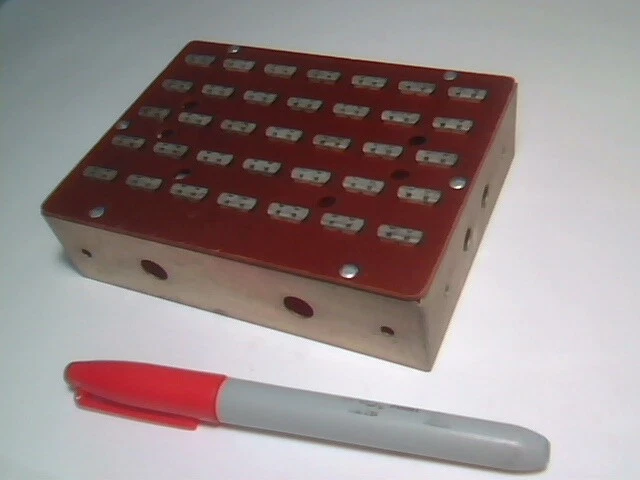

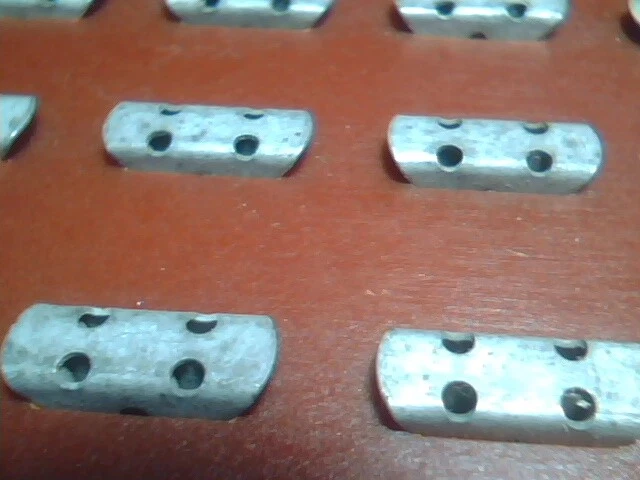

The Model 10 Develoboard is a proven tool in many laboratories and classrooms for the rapid assembly and disassembly of experimental circuits. It comes assembled ready for immediate use and incorporates 35 connectors, each of which is capable of making a firm junction between up to four wires of random diameters from .010" to .045". All mating surfaces of the contacts are carefully burnished by a patented process which makes for smooth insertion and a minimum of abrasion, so that components can be used over and over. Leads are left their original length, and after breadboarding the parts are usually perfectly OK for soldering into a prototype assembly.

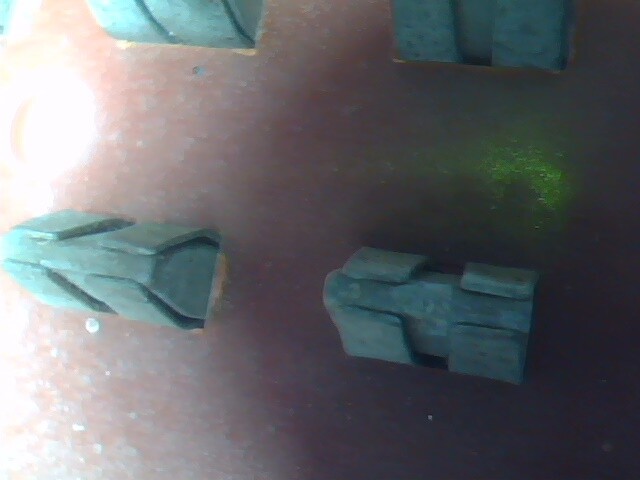

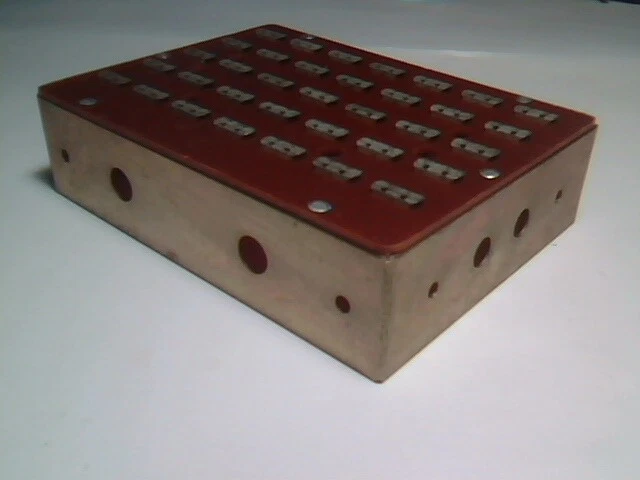

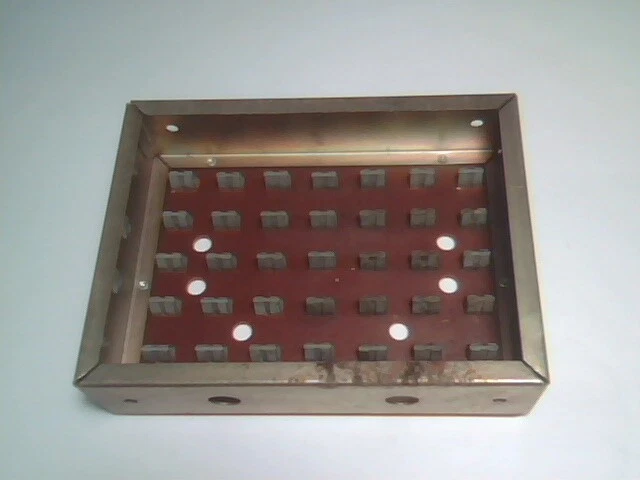

The outer, spring portion of the contact is of phosphor bronze, and the insert is of brass. Both parts are heavily tin-plated for lubricating action and low contact resistance. The board itself is phenolic and is riveted to a sturdy steel frame 3.75" x 5" x 1.25" high, finished in cadmium plate and iridite. This frame is drilled for mounting of phone-tip or banana jacks and for controls. It also has holes which permit bolting two or more units together.

USA BUYERS: No import fees or taxes.  Shipping includes tracking and insurance.

CANADIAN BUYERS: Must pay GST/HST so wait for an invoice before paying.  No local pickup.
OVERSEAS BUYERS: (Europe/Asia/Africa/SouthAmerica/Australia):  STANDARD shipping does not provide tracking or insurance.

We do not misrepresent the import value of items.
