Item description

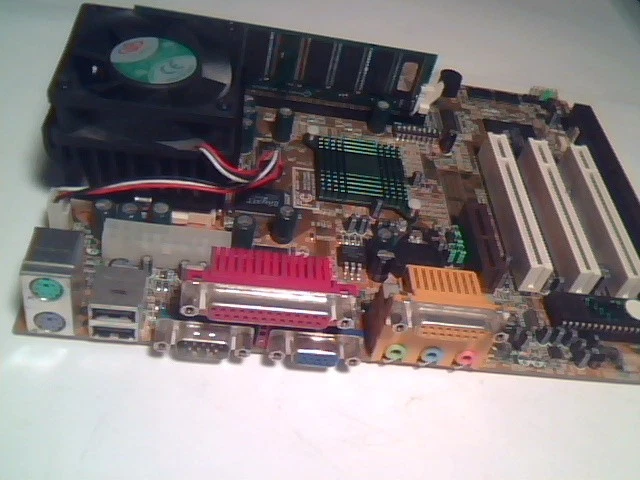

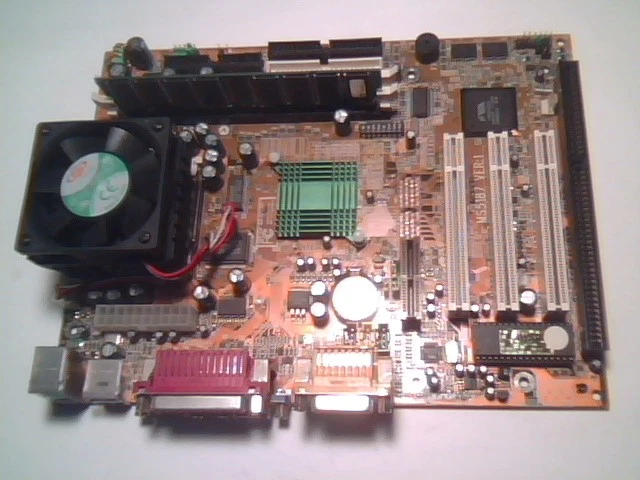

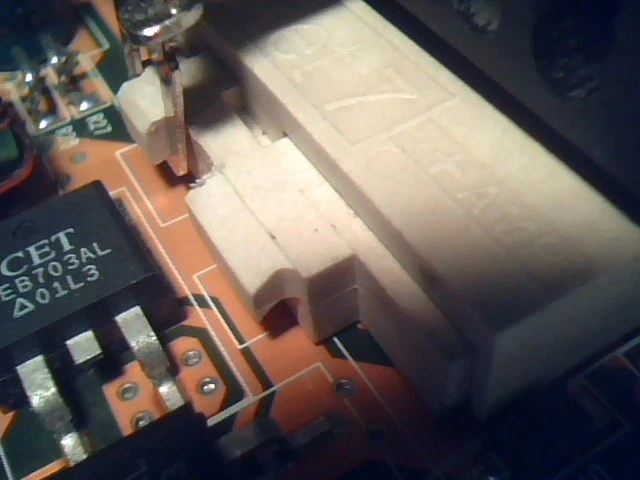

Just the item as pictured, no cables, no manual, no software
-----------------------------
Socket 7 supports Intel Pentium MMX and Cyrix 6x86/6x86L/6x86MX/MII and AMD K6/K6-2/K6-III
VIA® VT82C501(MVP4) chipset. (North bridge)

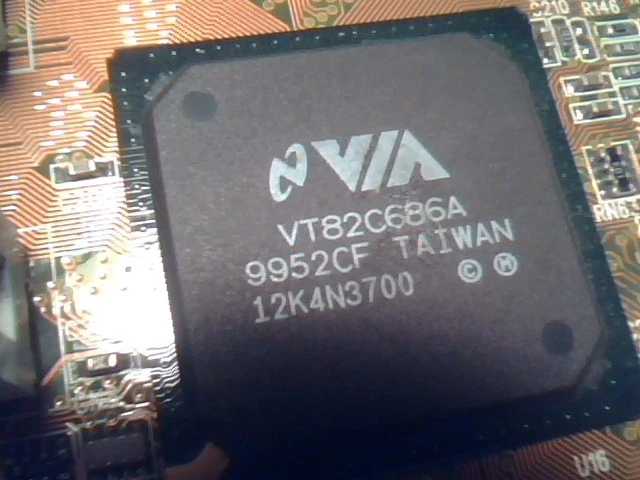

VIA® VT82C686A chipset. (South bridge) PCI Super I/O, SoundBlaster/Direct Sound AC97 Audio, UltraDMA-33/66

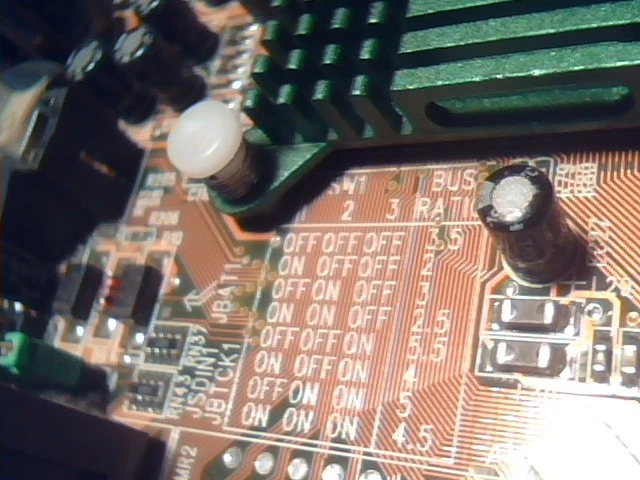

FSB (Front Side Bus) 66/75/83.3/95/100MHz
Main Memory - maximum 512MB, 3.3v SDRAM, four memory banks using two 168-pin DIMM sockets.
Slots:
- One AMR (Audio Modem riser) slot and one PTI (PanelLink TV-Out Interface) slot.
- Three 32-bit Master PCI Bus slots (3.3v/5v) and one 16-bit ISA bus slot. (wherein one PCI/ISA is shared)
On-Board IDE controller provides up to 4 drives, IDE HDD/CD-ROM with PIO, Bus Master and UltraDMA-33/66

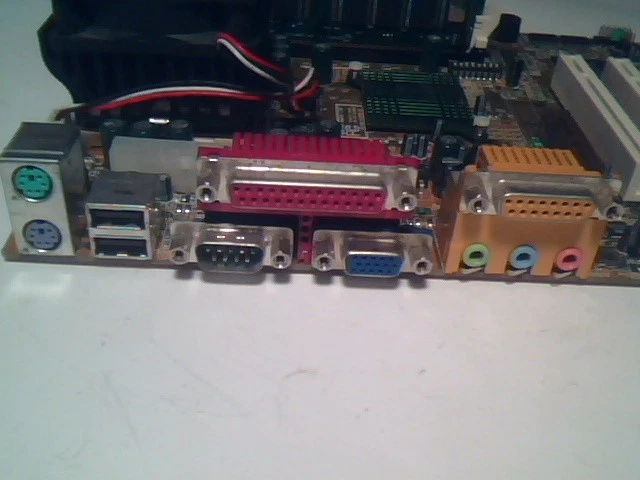

On-Board Peripherals include:
- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
- 1 serial ports (COMA)
- 1 parallel port supports SPP/EPP/ECP mode
- 2 USB ports
- 1 IrDA connector for SIR.
- 1 AMR
- 1 VGA Port
- 1 PTI
Video - MVP4 chip integrated, AGP 2D/3D Graphics
Audio - DirectSound AC97
Dimension - MICRO ATX Form Factor: 24cm(L) x 19.2cm(W) x 4 layers PCB
