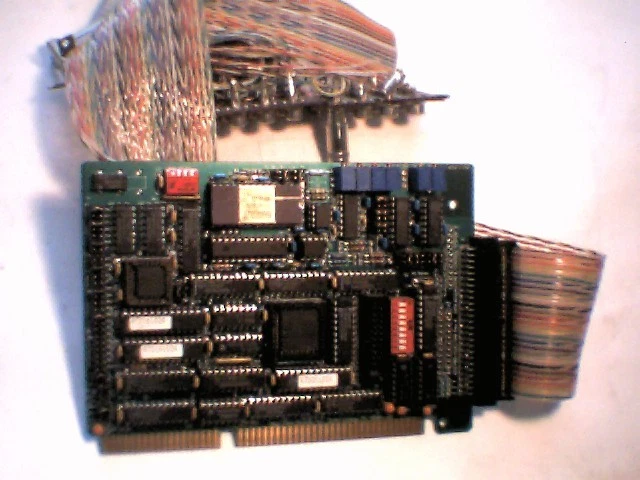

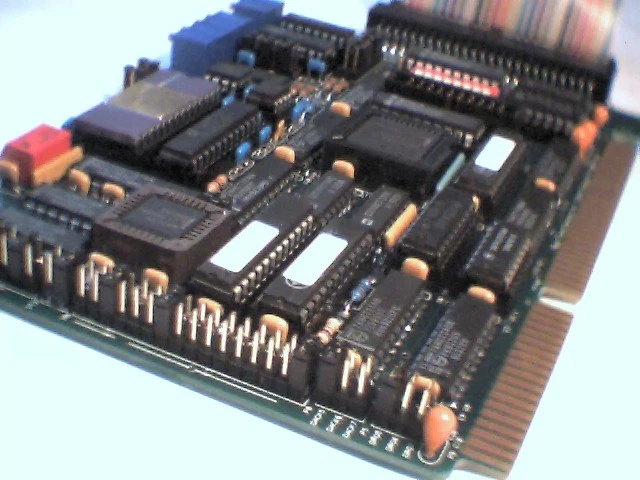

RTD AD2700 / ADA2700

vintage ISA Card

Used but in excellent condition

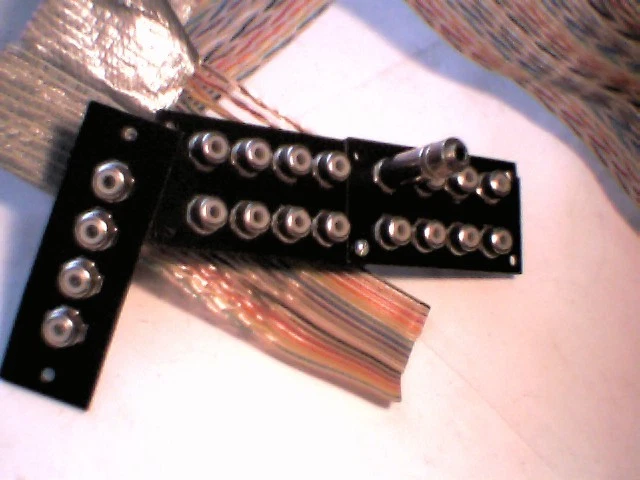

comes with custom ribbon cable and 20 RCA jacks on two boards

 The AD2700 and ADA2700 Advanced Indusrial Control boards turn your IBM PC/AT or compatible into a
high-speed high-performanc data acquisition and control system.  Installed within a single expansion slot in the
computer each 2700 series board  features:

- 8 differential or l6 single-ended analog input channels,

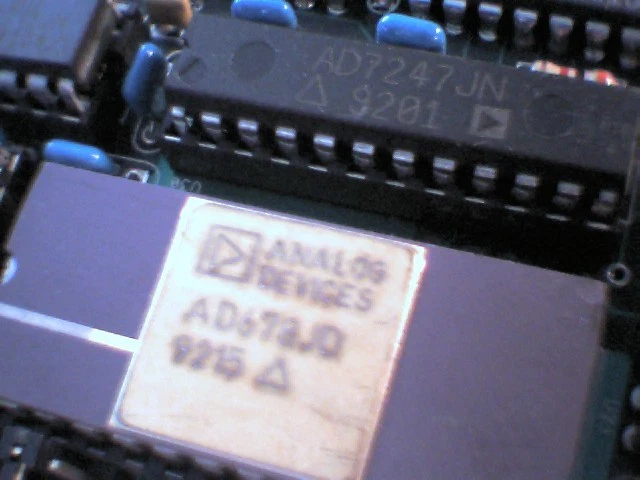

- 12-bit,5 microsecond analog-to-digital converte with 150kHz throughput,
. +5, +10, or 0 to +10 volt input range,
- Programmable gains of 1,2,4, and 8 with an on-board gain multiplier circuit,
- Threec onversion modes,
- DMA transfer,
- Trigger in and trigger out for extemal triggering or cascading boards,
- 16-bir AT bus compatibility,

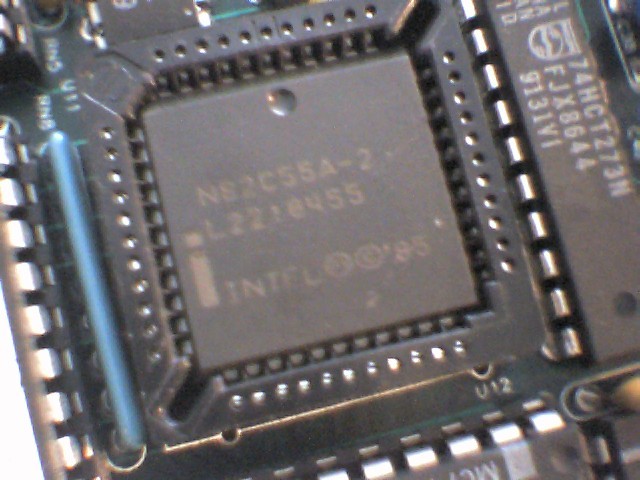

- 24 TTLI CMOS buffered 8 255-based digital I/O lines with optional pull-up or pull-down resistors,
- Threel 6-bit timer/counters (two cascaded for pacer clock),
- Two l2-bit digital-to-analog output channels with dedicated grounds( ADA2700 only),
- t5, +10,0 to +5,o r 0 to +10 volt analog output range (ADA2700 only),

USED but in good condition.  WORKING!

Just the item as pictured, no documentation, no software
